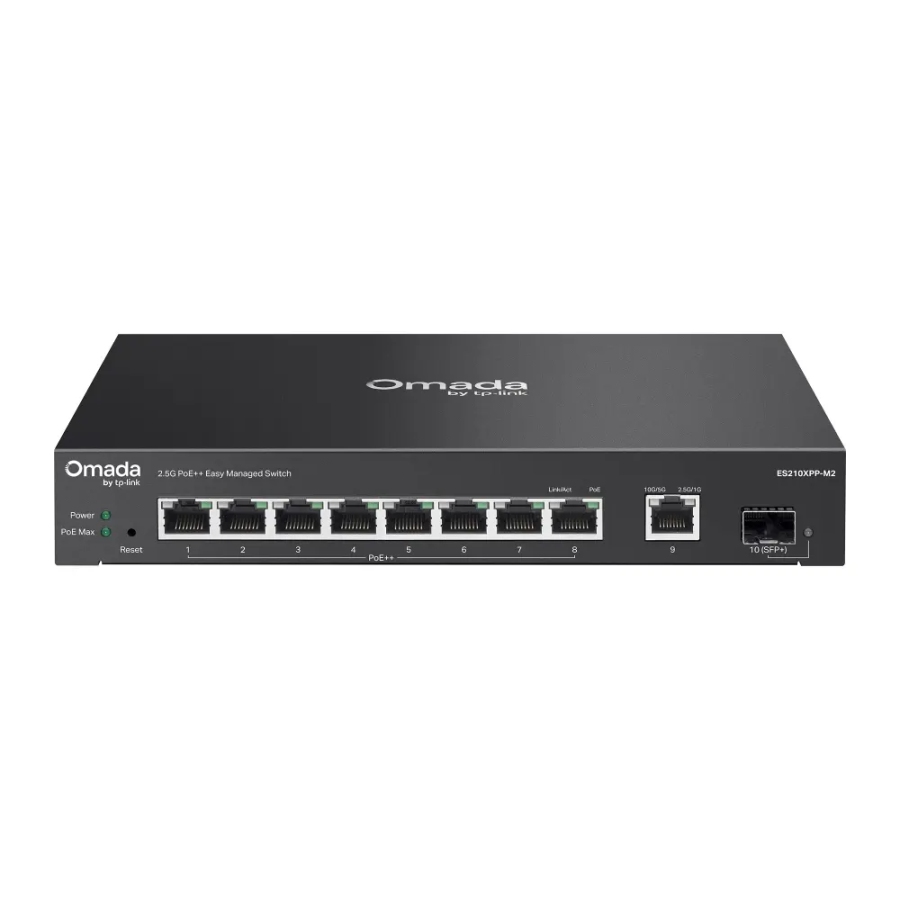

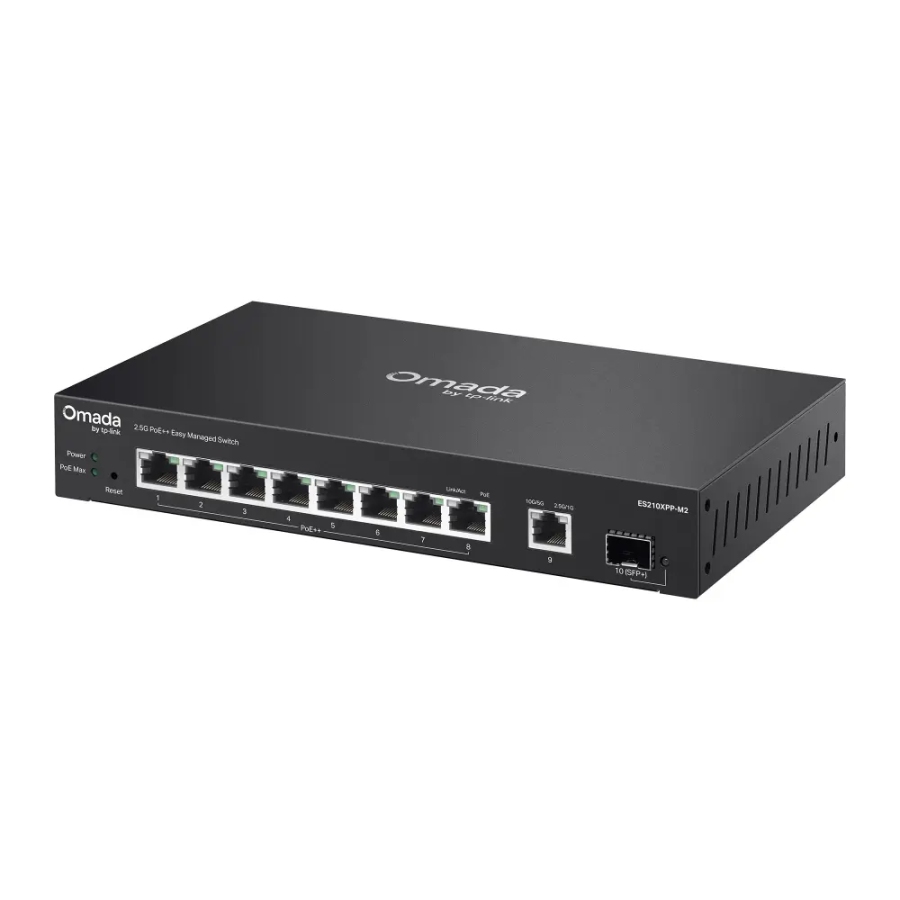

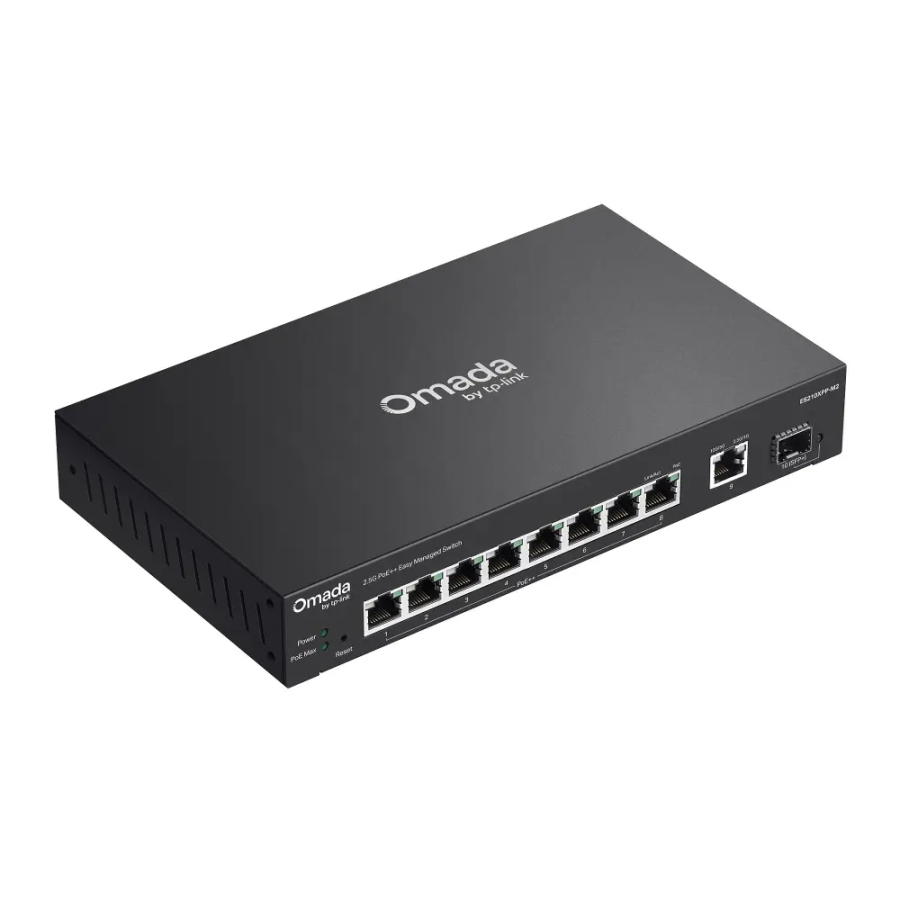

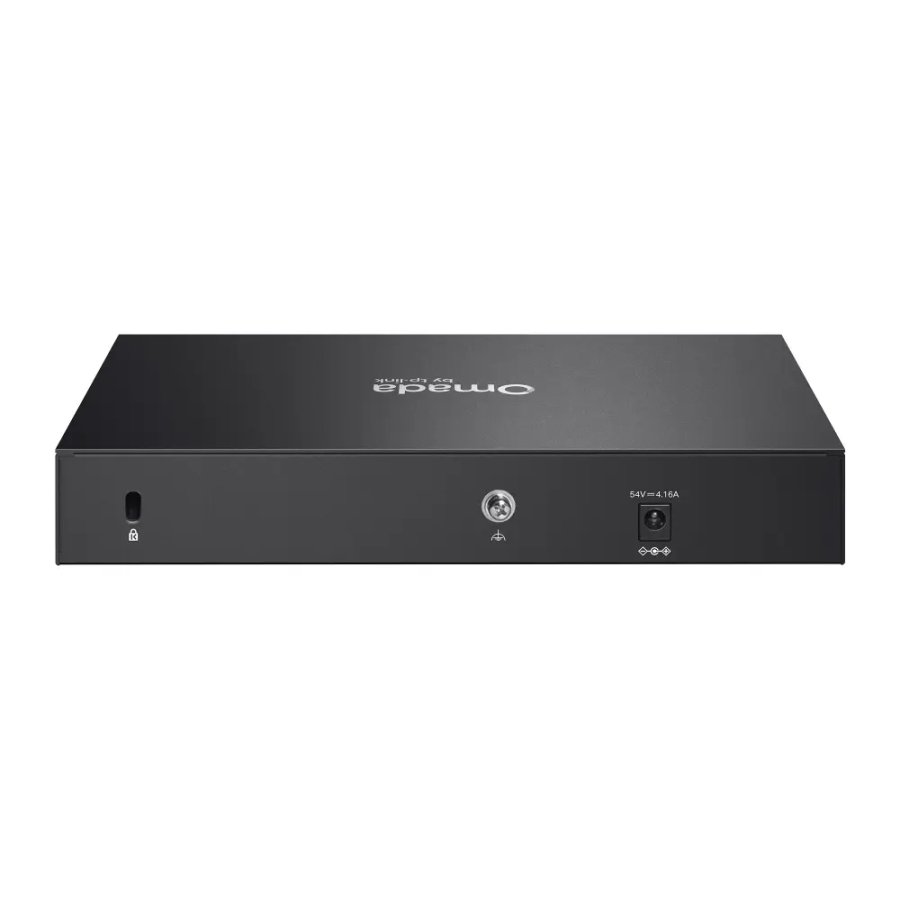

9Port 2.5Gbps Omada 8xPoE++ 1xSFP+ TP-Link
€ 297,50
Artikelnummer:
69814
EAN:
840460607483
| Beheerfuncties | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) | Port-based/802.1p/DSCP QoS8 Priority QueuesPriority Schedule Mode - WRR (Weighted Round Robin)Queue Weight ConfigBandwidth Control - Port-Based Rating LimitStorm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control? |
| Poorten & interfaces | |
|---|---|
| Aantal basis-switching RJ-45 Ethernet-poorten | 8 |
| Aantal SFP+ poorten | 1 |
| Snelheid SFP+ poorten | 10 Gbit/s |
| Aantal 10 Gbit RJ-45 Poorten | 1 |
| Netwerk | |
|---|---|
| 10G support | Ja |
| Virtuele LAN-functies | MTU VLANPort-Based VLAN802.1Q Tag VLANMax 32 VLAN Groups4K VID |
| Data-uitwisseling | |
|---|---|
| MAC-adrestabel | 16 K |
| Switchingcapaciteit | 80 Gbps |
| Jumbo frames | 10 KB |
| Packet forwarding rate (10 Mbps) | 59.52 Mpps |
| Packet buffergeheugen | 5 Mbit |
| Multicast-functies | |
|---|---|
| Multicast-ondersteuning | IGMP SnoopingIGMP v1/v2/v3 SnoopingSnel verlaten |
| Design | |
|---|---|
| Rack-montage | Nee |

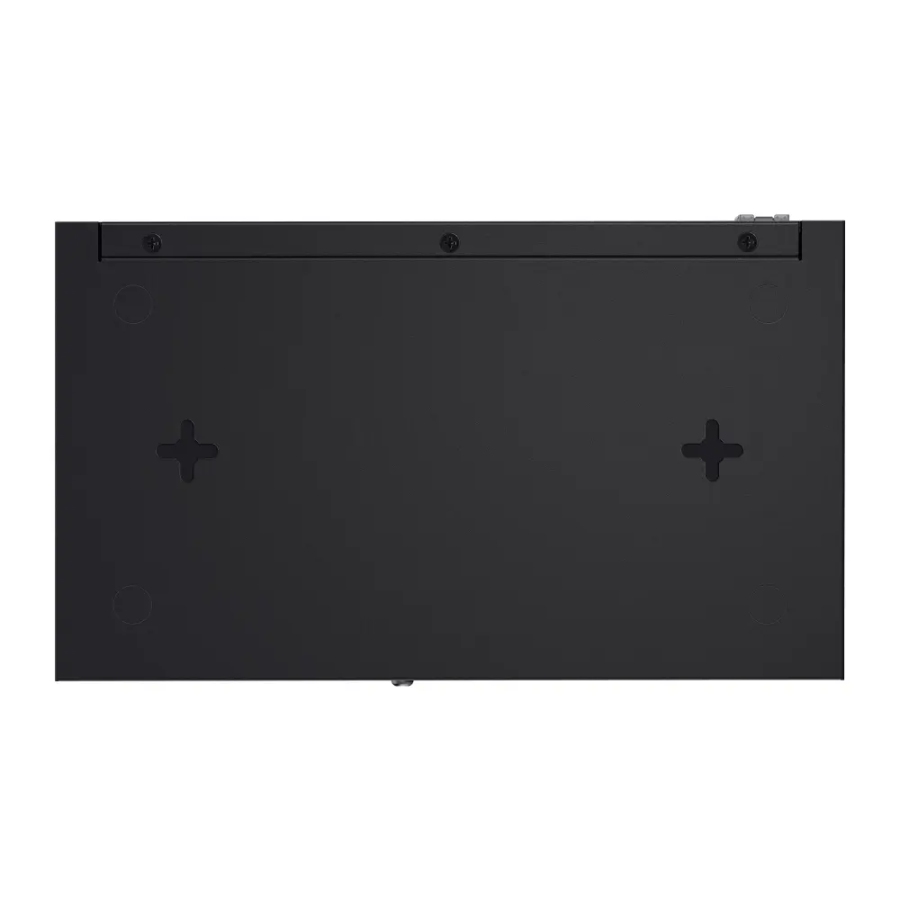

| Vormfactor | Bureaublad-/wandmontage |
| Prestatie | |
|---|---|
| Fanloos | Ja |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Ja |
| Vermogen per poort Power over Ethernet (PoE) | 90 W |
| Totaal Power over Ethernet (PoE)-budget | 250 W |
| Aantal Power over Ethernet (PoE ++)-poorten | 8 |
| Gewicht en omvang | |
|---|---|
| Breedte | 226 mm |
| Diepte | 131,2 mm |
| Hoogte | 35 mm |
| Netwerk | |
|---|---|
| Ethernet LAN, data-overdrachtsnelheden | 100, 1000, 2500 Mbit/s |
| L2 features | Link Aggregation, Static Link Aggregation, Up to 6 aggregation groups and up to 4 ports per groupLoop Prevention / Loopback DetectionFlow Control - 802.3x Flow ControlMirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/BothPort Statistics - Port Mirror Status - Traffic Statistics802.1ab LLDP |
| Maximale snelheid | 2500 Mbit/s |
| Design | |
|---|---|
| Kleur van het product | Zwart |
