Ubiquiti Dream Machine Beast

Netwerk
Ethernet LAN, data-overdrachtsnelheden	100, 1000, 2500, 5000, 10000 Mbit/s

Design
Kleur van het product	Aluminium
Type apparaat	Hyperscale-class Cloud Gateway
Display	1,3" touchscreen

Kenmerken
Aantal gebruikers	7500+ gebruiker(s)

Netwerk

Netwerk

Multi-WAN Load BalancingShadow Mode (VRRP) High AvailabilityLACP Port AggregationDynamic RoutingAdvanced QoSMulticast DNS (mDNS)Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)Integrated RADIUS ServerRADIUS over TLS (RadSec)Additional Internet Failover with UniFi LTE BackupInternet Quality and Outage ReportingPolicy-based WAN and VPN RoutingCustomizable DHCP ServerIPv6 ISP SupportIGMP ProxyAll Traffic Flows

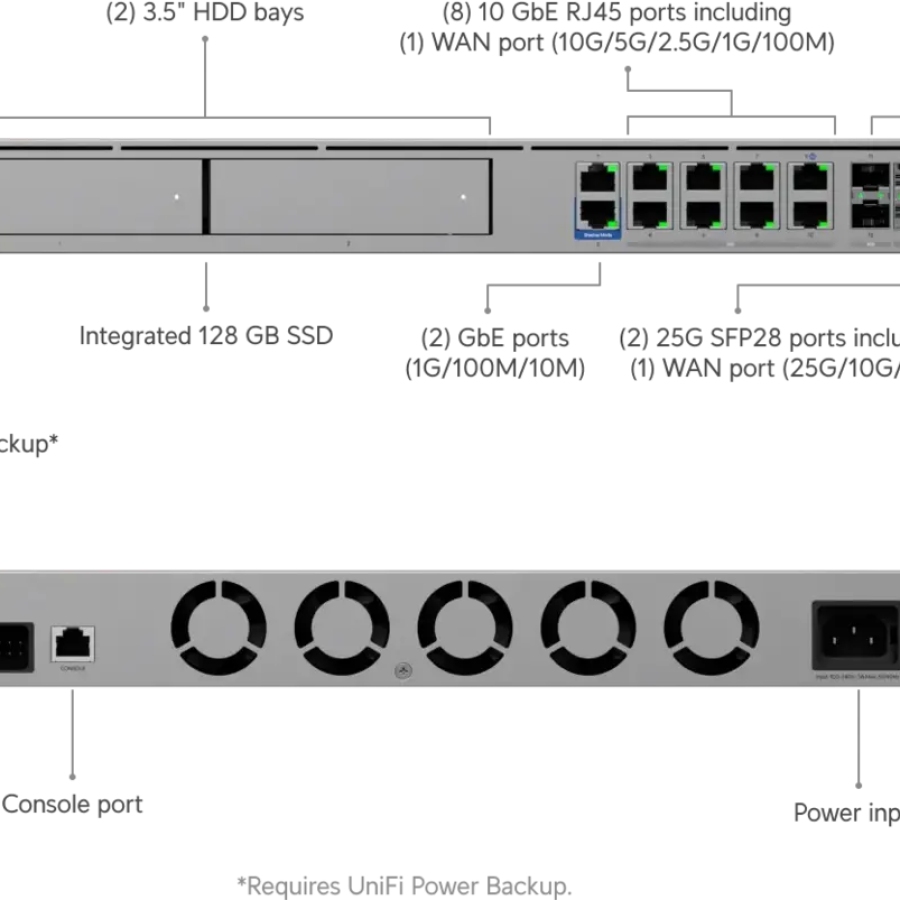

Poorten & interfaces
3.5" HDD bay	2x 3.5" NVR HDD bays

Beheerfuncties
UniFi Application Suite	Network, Protect, Access, Talk, Connect
Beheerde UniFi-apparaten	750+

Poorten & interfaces
Aantal Ethernet LAN (RJ-45)-poorten	10
Aantal WAN-poorten	Maximaal 8
SFP+ snelheid	2x 10 Gbps2x 25 Gbps
Aantal SFP+ poorten	4
Ethernet LAN (RJ-45) snelheid	2x (1G/100M/10M)8x (10G/5G/2.5G/1G/100M)

Beveiliging
Beveiliging	Stateful FirewallApplication-Aware Layer 7 FirewallDPI & Traffic IdentificationZone-Based Firewall Advanced Filtering (Regions, Domains, Apps)Content FilteringIntrusion Prevention (IPS/IDS)Ad BlockingIDS/IPS Signatures 55,000+ with CyberSecure

Capaciteit
2K-camera's	60 Stuks
4K-camera's	40 Stuks
HD-camera's	100 Stuks

Geheugen
Onboard opslag	128 GB SSD

VPN en SD-WAN
Site-to-site VPN	Site Magic, IPsec, OpenVPN
VPN Server	Identity Endpoint One-Click VPNTeleport Zero-Configuration VPNWireGuardOpenVPNL2TP
VPN Client	OpenVPN, WireGuard

Kenmerken
Type processor	Octa-core ARM® v9 at 2.1 GHz
Intern geheugen	16 GB

Design
Materiaal behuizing	Aluminium CNC, SGCC-staal
Rack hoogte	1U

Gewicht en omvang
Breedte	442,4 mm
Diepte	325 mm
Hoogte	43,7 mm
Gewicht	5,5 kg

Energie
Vermogensverbruik (max)	100 W
