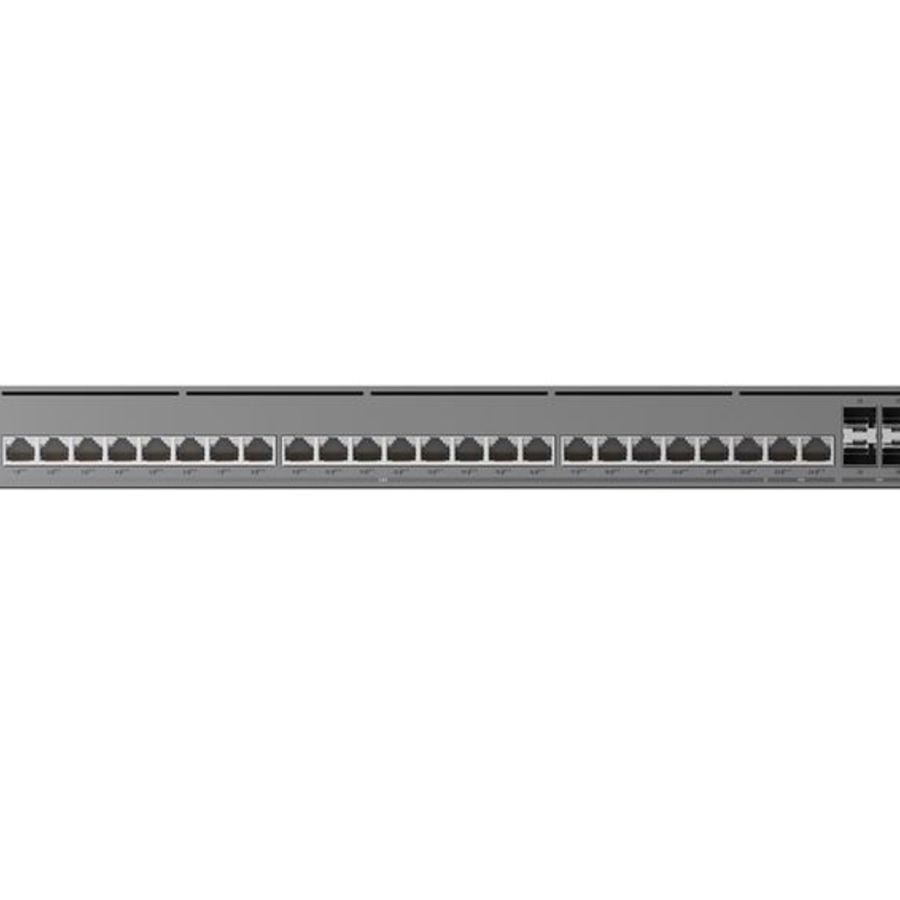

Ubiquiti USW-Pro-HD-24-PoE Etherlighting
€ 1.184,50
Artikelnummer:
67390
EAN:
0810084696606
| Beheerfuncties | |
|---|---|
| Switch type | Managed |
| Poorten & interfaces | |
|---|---|
| Aantal basis-switching RJ-45 Ethernet-poorten | 24 |
| Type basis-switching RJ-45 Ethernet-poorten | 2x 10Gbit22x 2,5Gbit |
| Aantal SFP+ poorten | 4 |
| Netwerk | |
|---|---|
| 10G support | Ja |
| Data-uitwisseling | |
|---|---|
| Switchingcapaciteit | 230 Gbps |
| Throughput | 115 Gbps |
| Packet forwarding rate (10 Mbps) | 171,12 Mpps |
| Design | |
|---|---|
| Rack-montage | Ja |
| Materiaal behuizing | SGCC Staal |
| Energie | |
|---|---|
| Vermogensverbruik (max) | 56W (exclusief PoE-uitgang) |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Ja |
| Voltagebereik Power over Ethernet (PoE) | 44-57V DC |
| Vermogen per poort Power over Ethernet (PoE) | PoE: 15.4WPoE+: 30WPoE++: 60W |
| Totaal Power over Ethernet (PoE)-budget | 600 W |
| Maximaal PoE vermogen per (PoE++) poort | 60 W |
| Aantal Power over Ethernet (PoE ++)-poorten | 24 |
| Overige specificaties | |
|---|---|
| Connectiviteitstechnologie | Bedraad |
| Gewicht en omvang | |
|---|---|
| Breedte | 442,4 mm |
| Diepte | 400 mm |
| Hoogte | 44 mm |
| Gewicht | 6,5 kg |
| Netwerk | |
|---|---|
| Ethernet LAN, data-overdrachtsnelheden | 100, 1000, 2500, 5000, 10000 Mbit/s |
| Maximale snelheid | 10000 Mbit/s |
| Layer 2 functies | IGMP snoopingSTP / RSTP with priorities and port-level disablePort isolationStorm controlVoice VLANPort mirroringLACP port aggregationMulticast / broadcast rate limitingMAC address blockingFlow control 802.1X controlJumbo framesProprietary loop protectionDHCP snooping / guardingEgress rate limit LLDP-MEDPort restricted by MACDevice isolation with ACLs QoS Pro AV |
| Design | |
|---|---|
| Kleur van het product | Aluminium |
| Display | 1.3" Touchscreen |

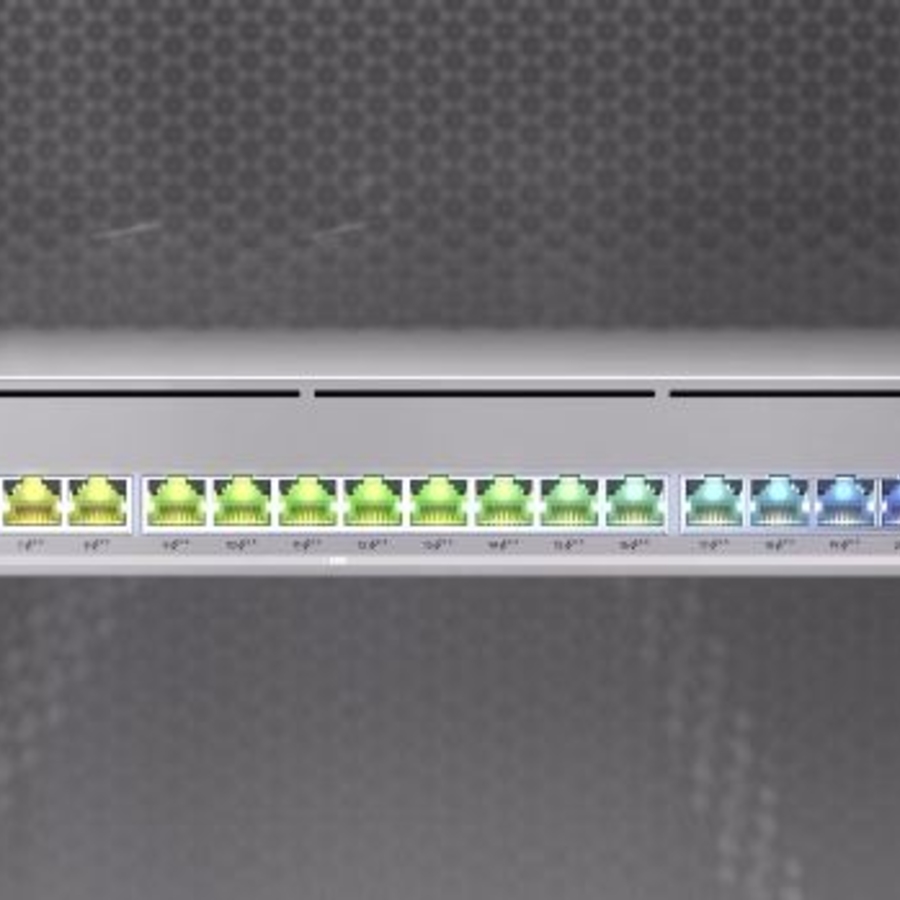

| Etherlighting™ | Etherlighting-poorten die oplichten om de poortlocatie, snelheid/link en native VLAN/netwerk aan te geven |
